RECO PCB V4.1

About

The RECO is a PCB that connects in between your arcade cabinet/supergun and the JAMMA PCB game offering features such as on-the-fly button layout remapping, rapid-fire, 6 profiles to store your settings, and more.

General

• JAMMA, JAMMA+ compatible
• Programmable button layout
• Programmable rapid-fire (VSync synchronized or asynchronous, 6 different fire rates)
• Buttons 1-6 on the JAMMA connector (buttons 4-6 can be disabled), making it a "CHAMMA" compatible output
• CPS-2 kick harness input for buttons 4-6 (the RECO's JAMMA edge accepts buttons 1-5)
• Buttons 4-6 on the JST-XH 6 pin “kick harness” connector that is compatible with the HAS kick harnesses
• 6 profiles per player to save the button layout and rapid-fire settings
• Tournament Mode for disabling the programming functionality
• Built-in voltmeter for +5 V (comes in red, blue or yellow, shipped randomly)
• Selectable buffered CSync
• Equipped with a connector for the Negatron DC/DC converter
• Comes with a plexiglass case

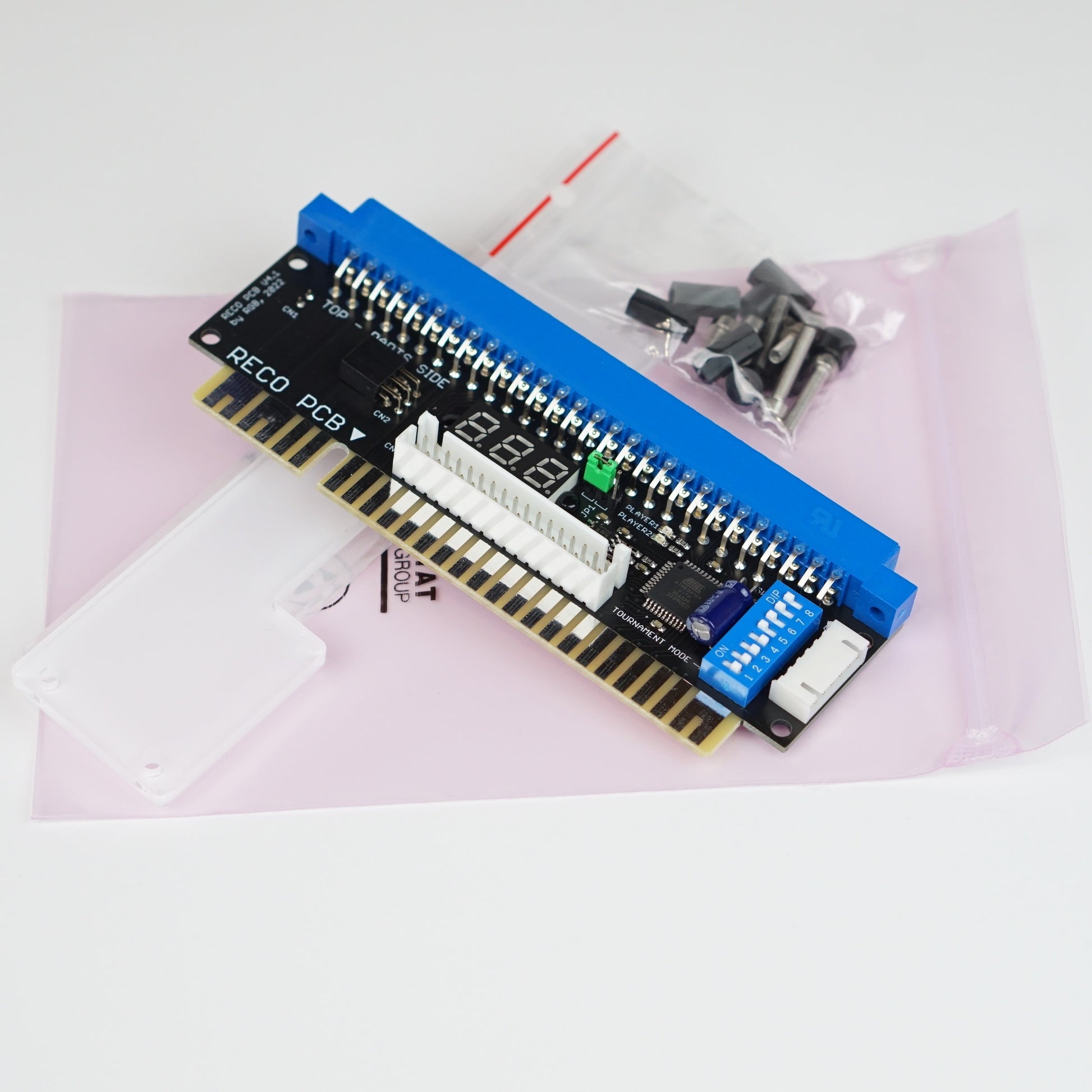

The package includes:

• a RECO unit

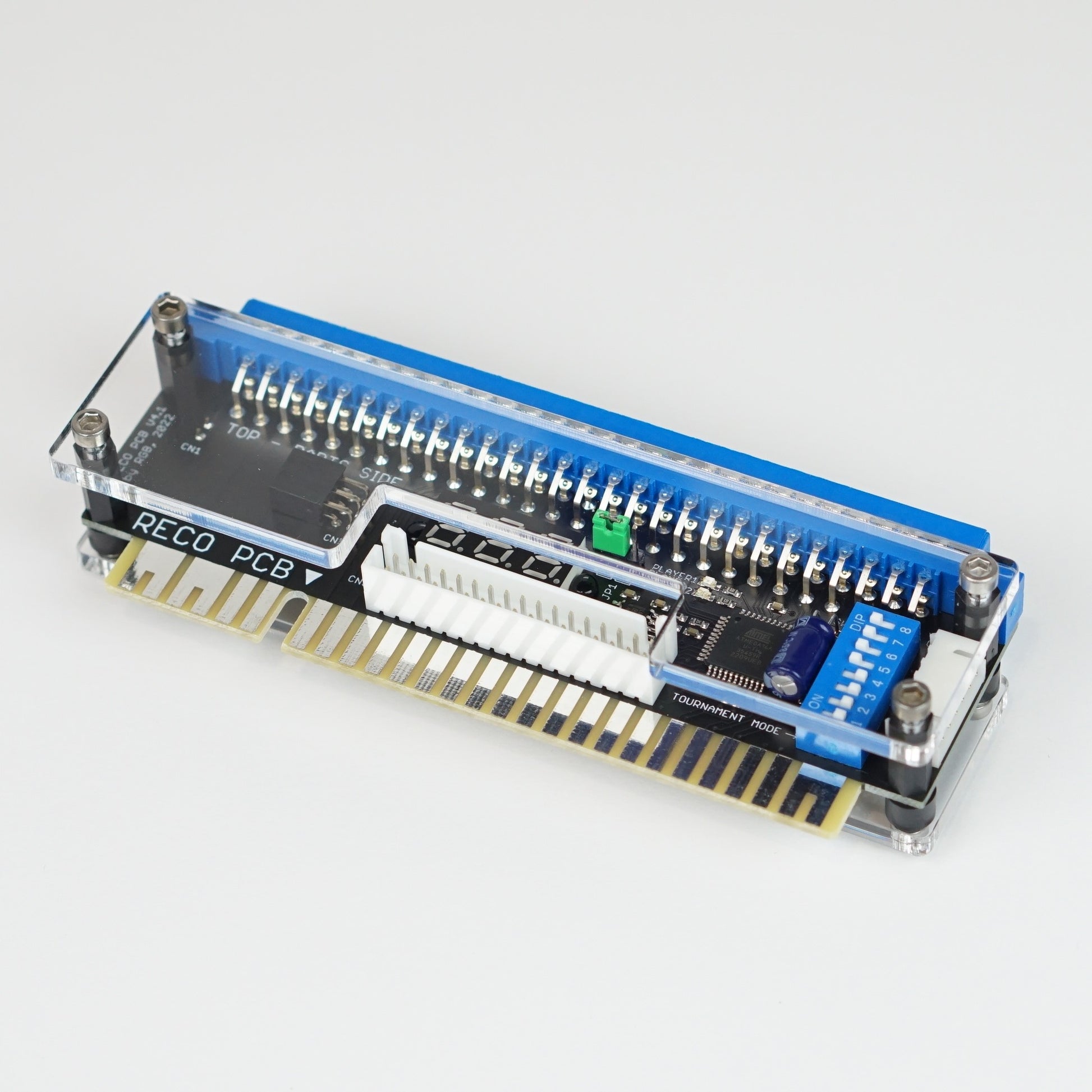

• a complete plexiglass case (4 mm thick plexiglass cover for top and bottom, spacers, and bolts; the case comes unassembled)

 *Make sure you read and follow the Installation and Operation sections.

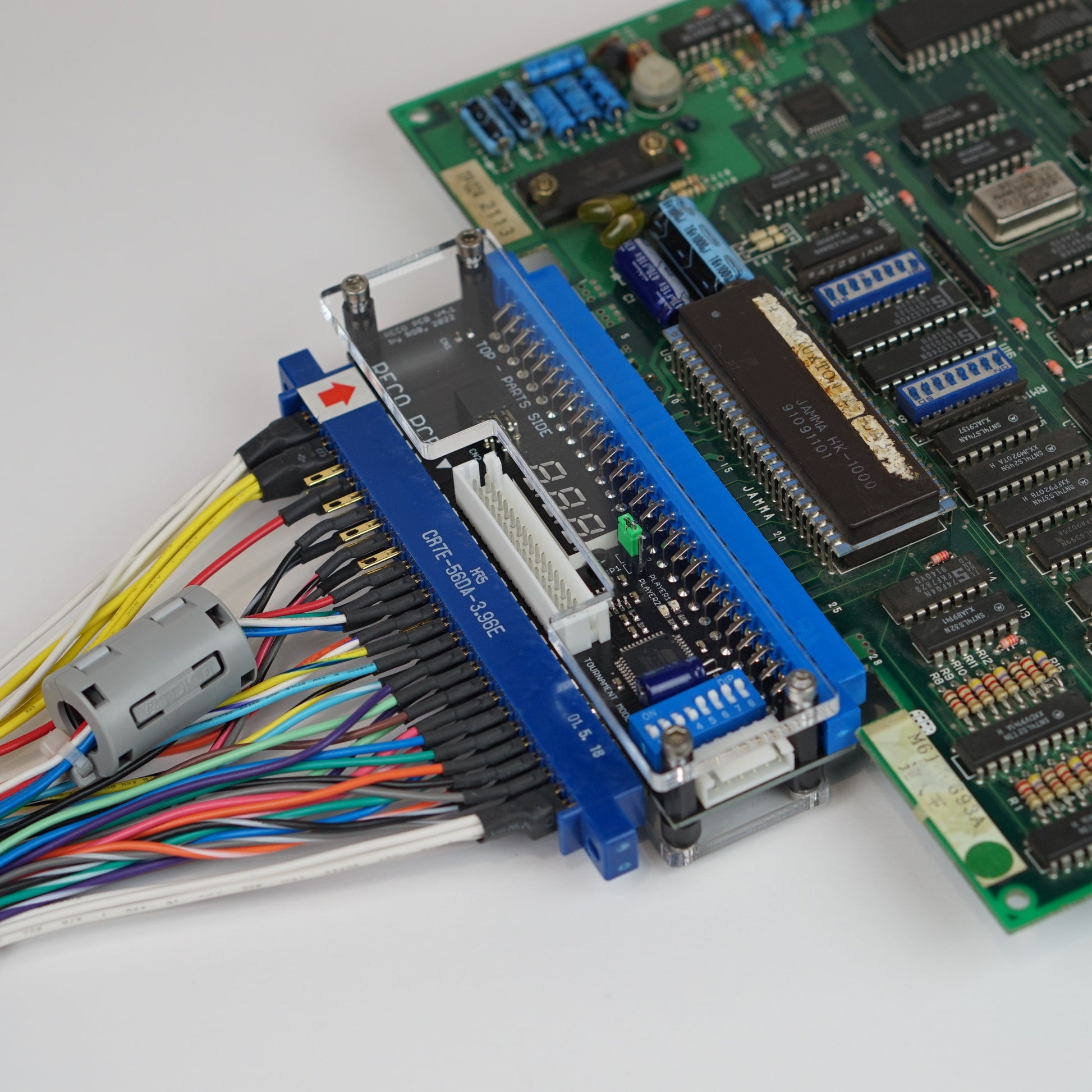

**The JAMMA harness and the PCB game visible in the photo present a setup example and are not included with the RECO PCB set.
