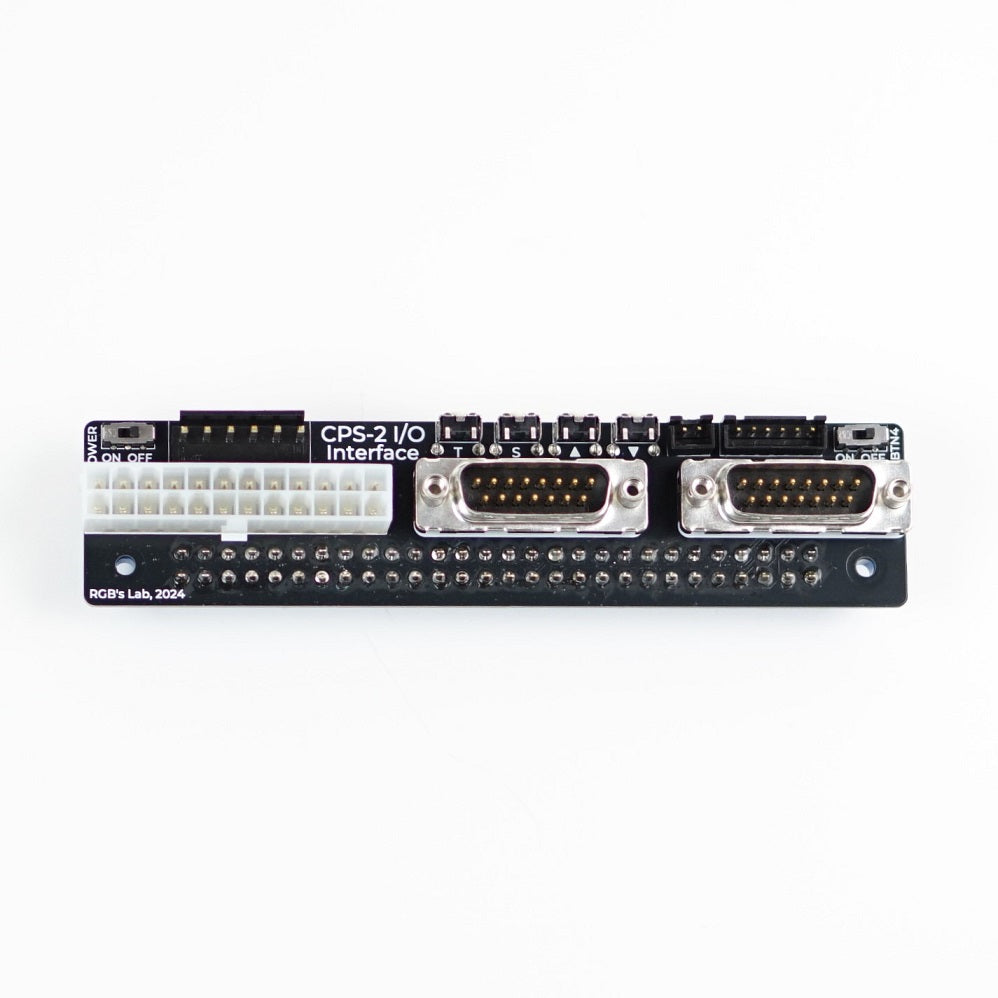

CPS-2 I/O Interface

CPS-2 I/O Interface is a simple adapter that plugs in directly to the CPS-2 motherboard and allows you to power the CPS-2 using a standard ATX power supply, and to connect the NeoGeo compatible controllers. The CPS-2 I/O interface is designed to be used with the CPS2 digital AV interface, which empowers the CPS-2 with a true HDMI output.​

Features

• ​ATX power supply connector with an on/off switch
• Alternative 6-pin VH power supply connector to connect a real arcade power supply (compatible with the HAS PSU harness)
• DB15 controller ports (NeoGeo compatible, extended to support buttons 5 and 6)
• Test, Service, and Volume UP/DOWN buttons (Volume UP/DOWN buttons are needed to control the CPS2 digital AV interface)
• Buttons 1-4 on the JAMMA connector (button 4 can be disabled using a switch; it’s necessary to disable the JAMMA button 4 for the Vampire Savior)​
• Buttons 4-6 on the “kick harness” connector​
