A GP2040-CE DIY PCB designed specifically for the famous Namco NPC-102 arcade stick.

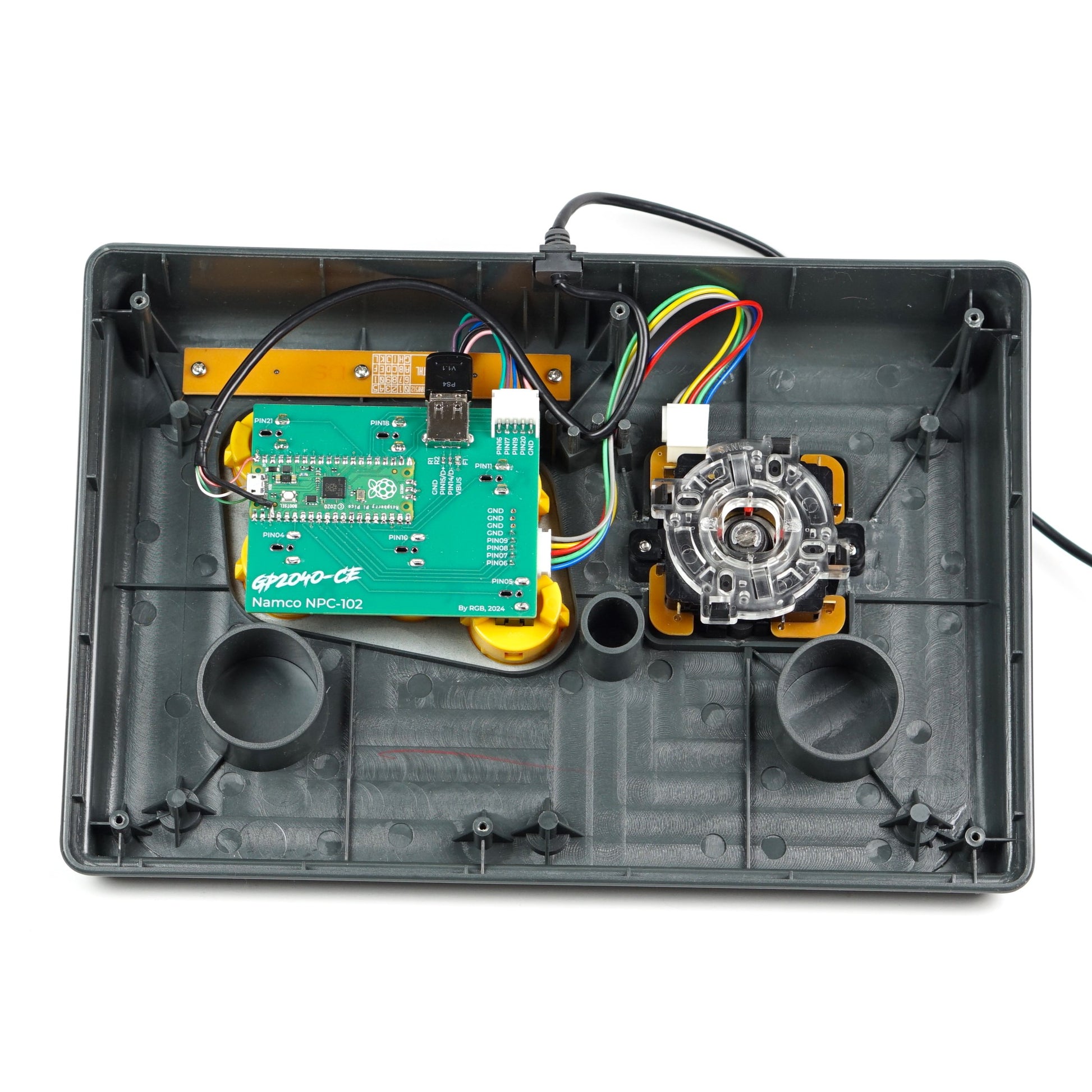

It replaces the original PlayStation PCB inside the stick and turns the Namco arcade stick into a solid, modern USB arcade controller.
It can be mounted onto Sanwa, Seimitsu, or the original Namco buttons.

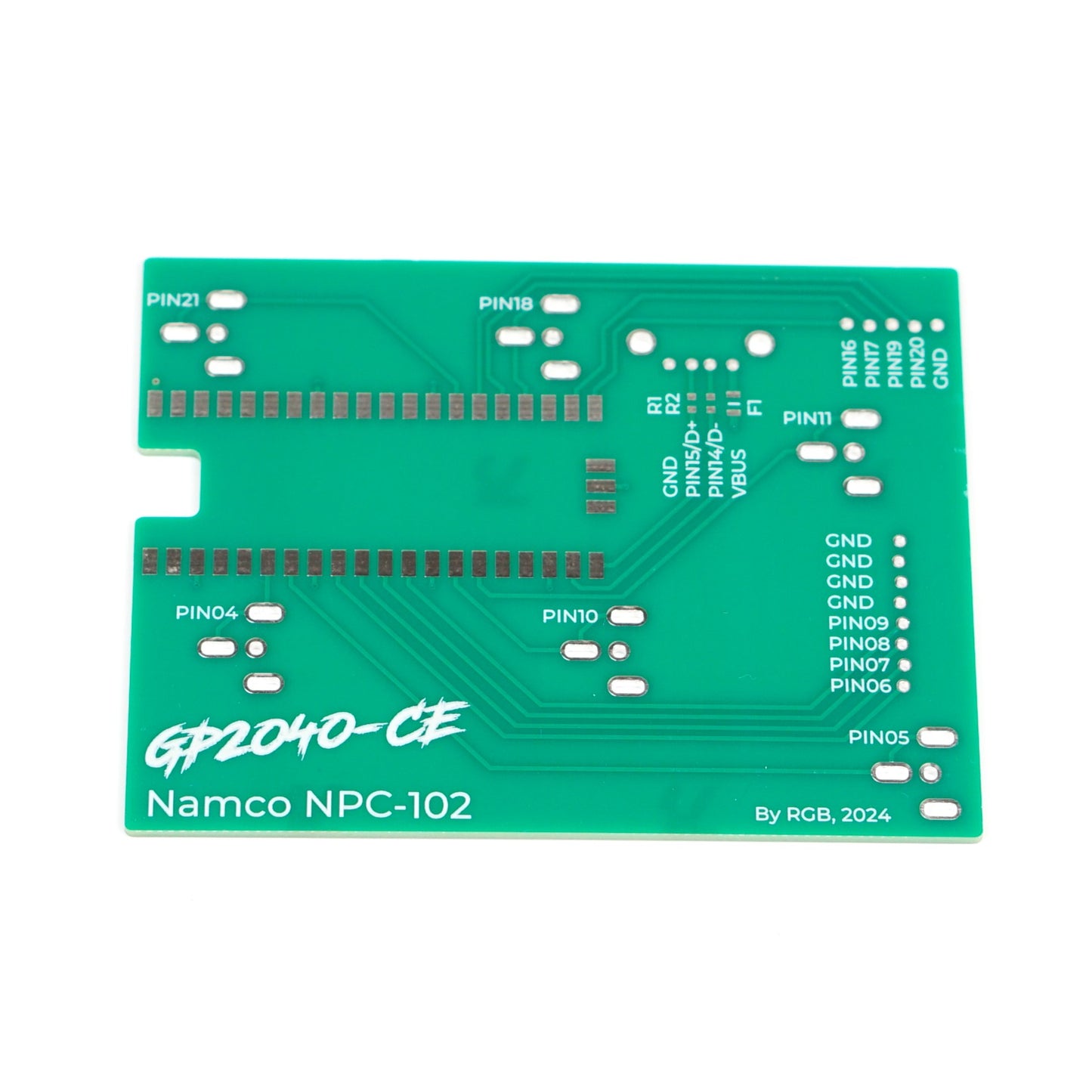

This offer is for an unpopulated (bare) PCB only.

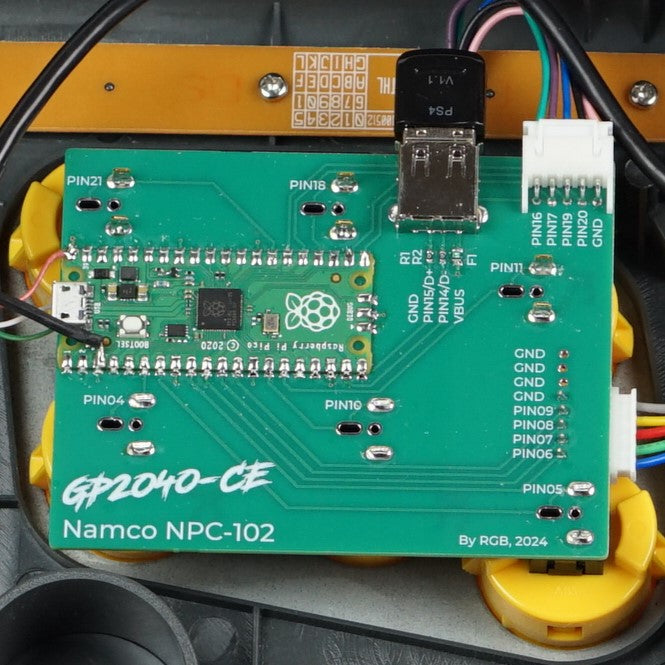

Parts needed to complete the build:
- Raspberry Pi Pico
- 5-pin and 8-pin connectors: S5B-XH-A and S8B-XH-A (optional, you can solder wires directly to the PCB instead)
Required only if you want USB host functionality:
- R1 and R2: 22 Ohm 0603 resistors
- F1: MF-PSMF050X-2 (or equivalent resettable fuse)
- A generic USB-A connector
Firmware flashing instructions: https://gp2040-ce.info/installation

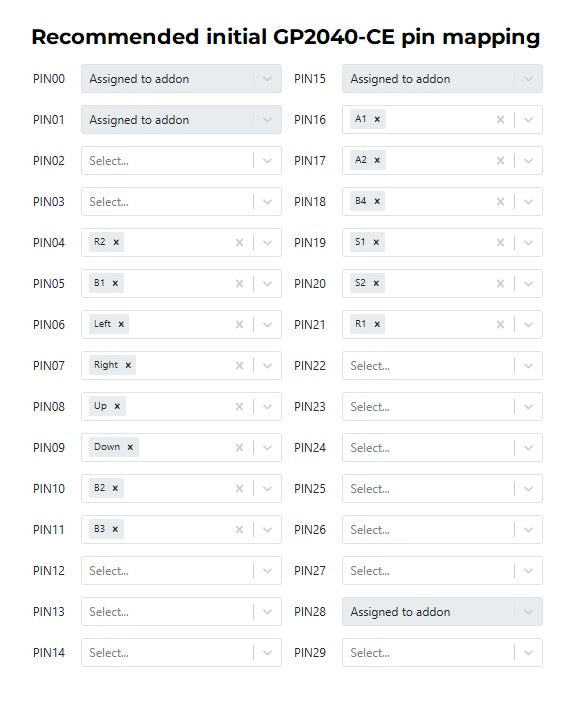

You will need to reconfigure the button layout after flashing, so make sure to note where you connect PIN 17. By default, it is assigned to "S2" (Start), which is required to enter the Web Configurator.
Many thanks to the creators of the amazing GP2040-CE project. Please visit the official website of this project - https://gp2040-ce.info/
