JAMMA Controls Splitter
JAMMA Controls Splitter
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

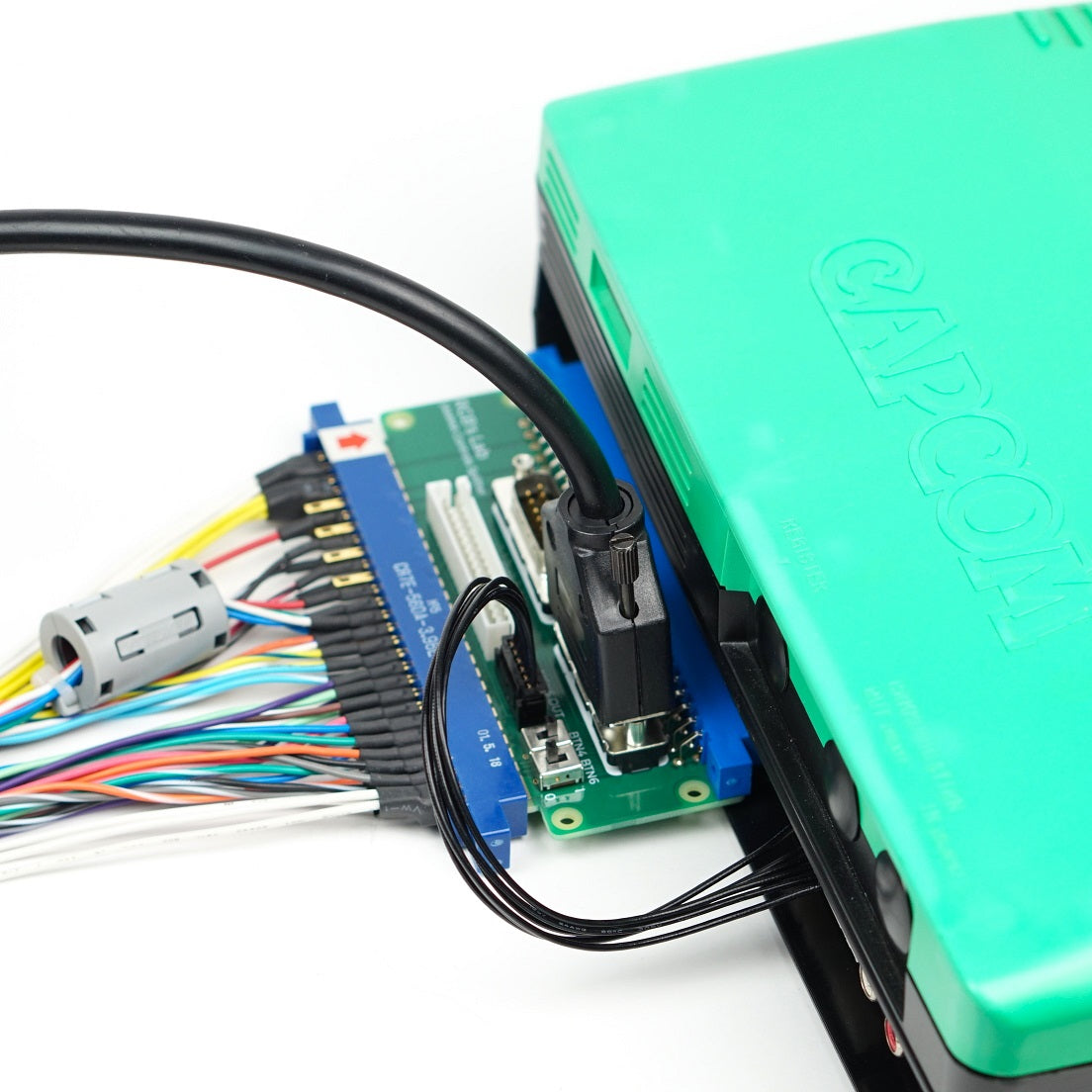

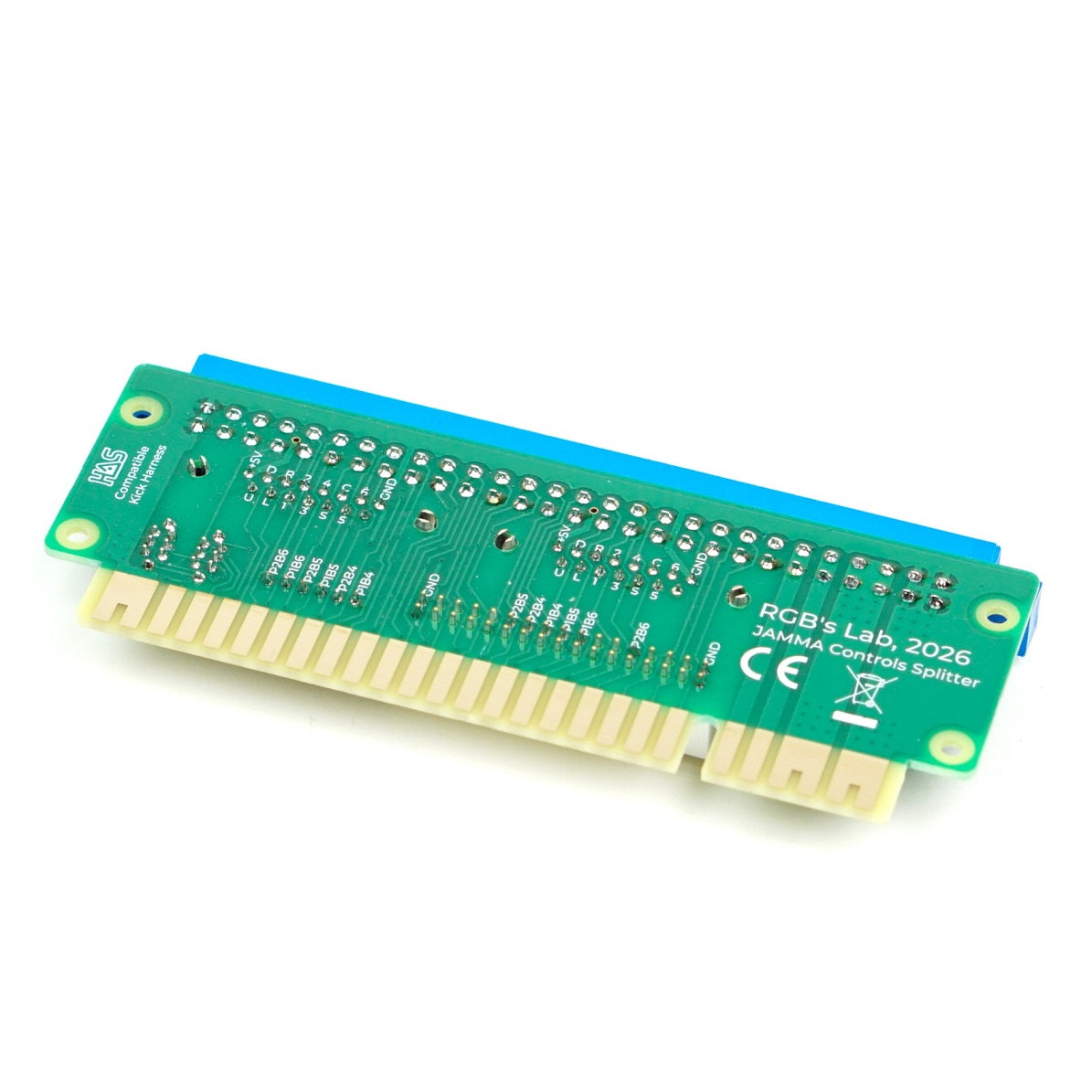

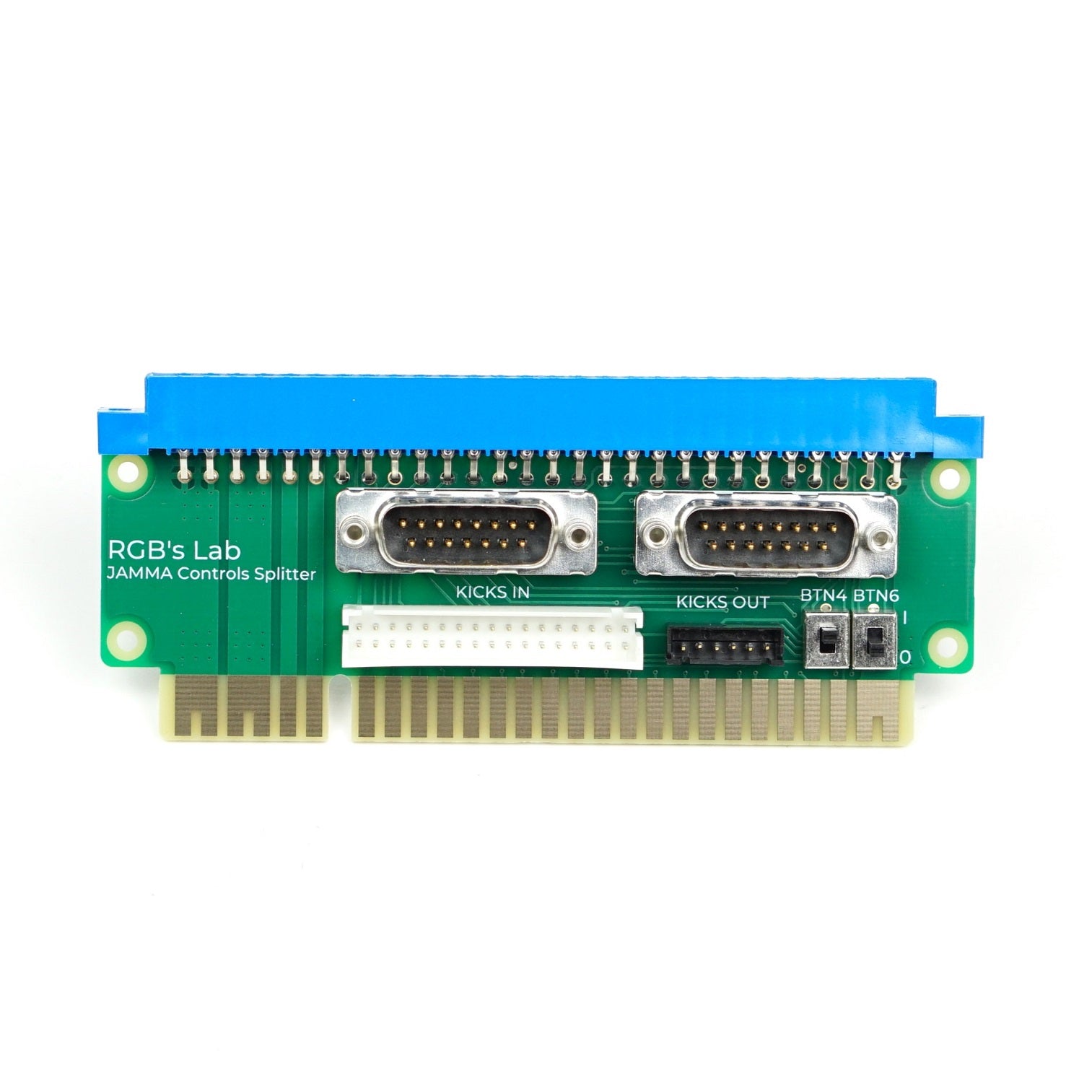

An inline JAMMA adapter that splits the controls to DB15 ports for Player 1 and Player 2.
- Neo Geo compatible, with extended support for buttons 5 and 6.
- It features kick harness input and output connectors, allowing you to use 6 button controllers in arcade cabinets that otherwise lack sufficient buttons or a dedicated kick harness.
- It includes a switch to enable/disable button 4 on the JAMMA connector - perfect as a passthrough adapter to resolve the known bug with Morrigan's Raging Demon super move in Vampire Savior on the CPS-2.
- JAMMA button 6 enable/disable switch.
Pinout
The diagram shows the connector looking at the adapter.
| Pin | Description | Pin | Description |
| 1 | GND | 9 | - |
| 2 | Button 6 | 10 | Button 5 |
| 3 | Coin | 11 | Start |
| 4 | Button 4 | 12 | Button 3 |
| 5 | Button 2 | 13 | Button 1 |
| 6 | Right | 14 | Left |
| 7 | Down | 15 | Up |
| 8 | +5V | - | - |
