Power Supply Cover

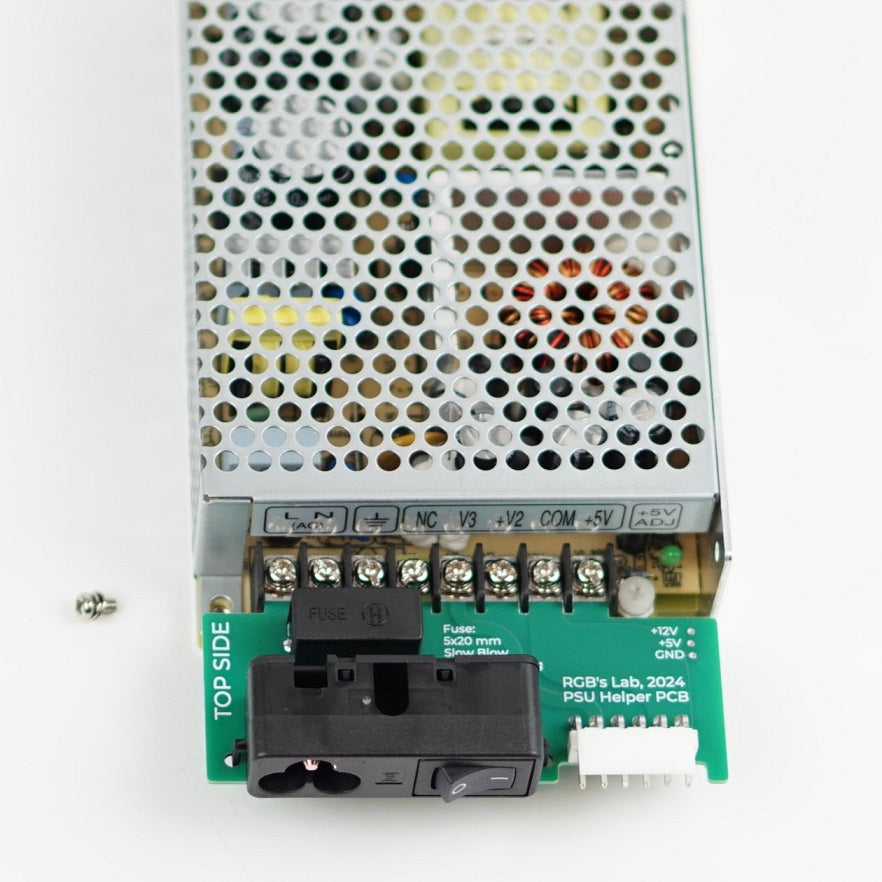

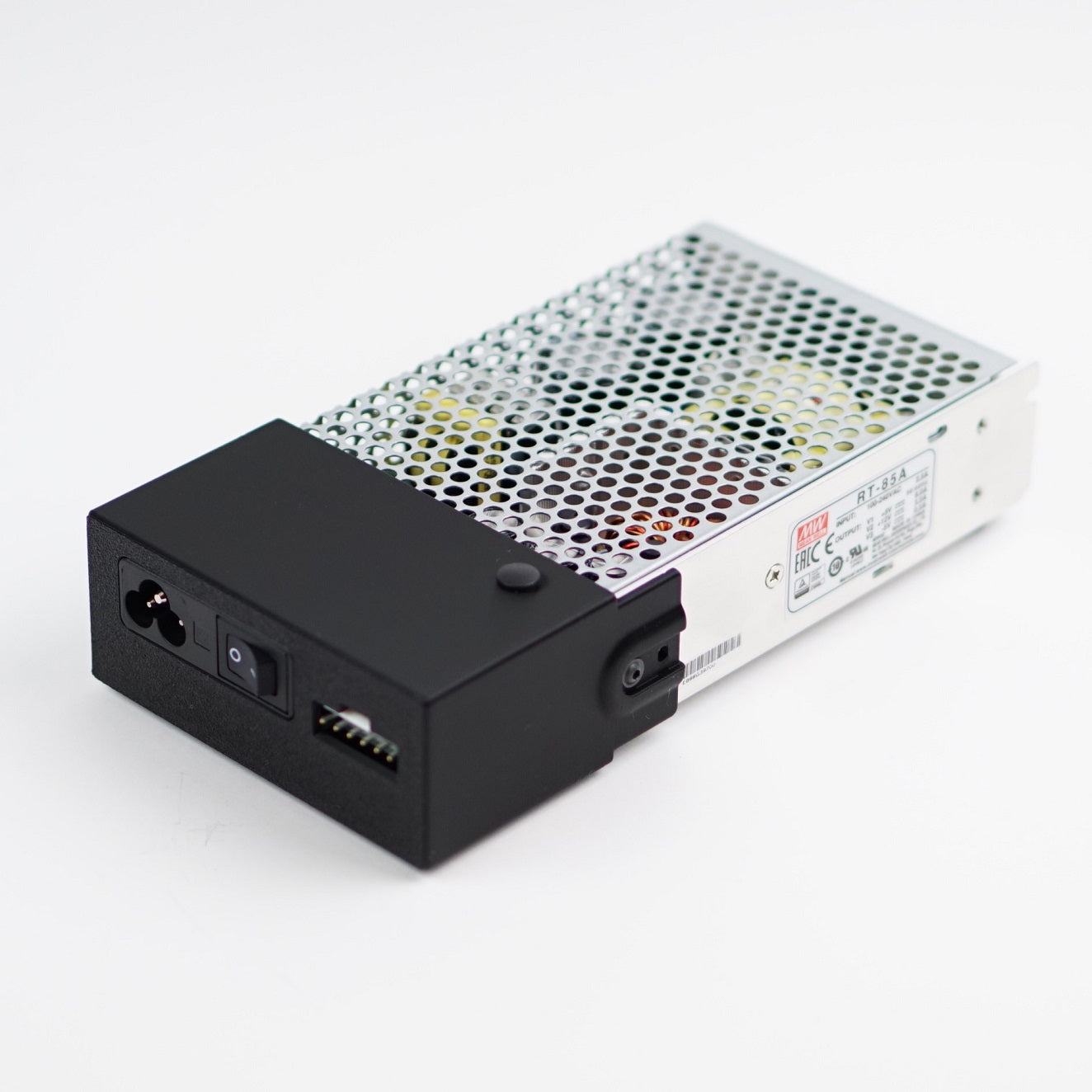

A 3D printed cover for the Mean Well power supply RT series. It uses a custom PCB with an IEC C5 "cloverleaf" power inlet, a fuse, a switch, and a HAS compatible 6-pin JST-VH connector.

Compatibility:

• RT-65A
• RT-85A
• RT-125A

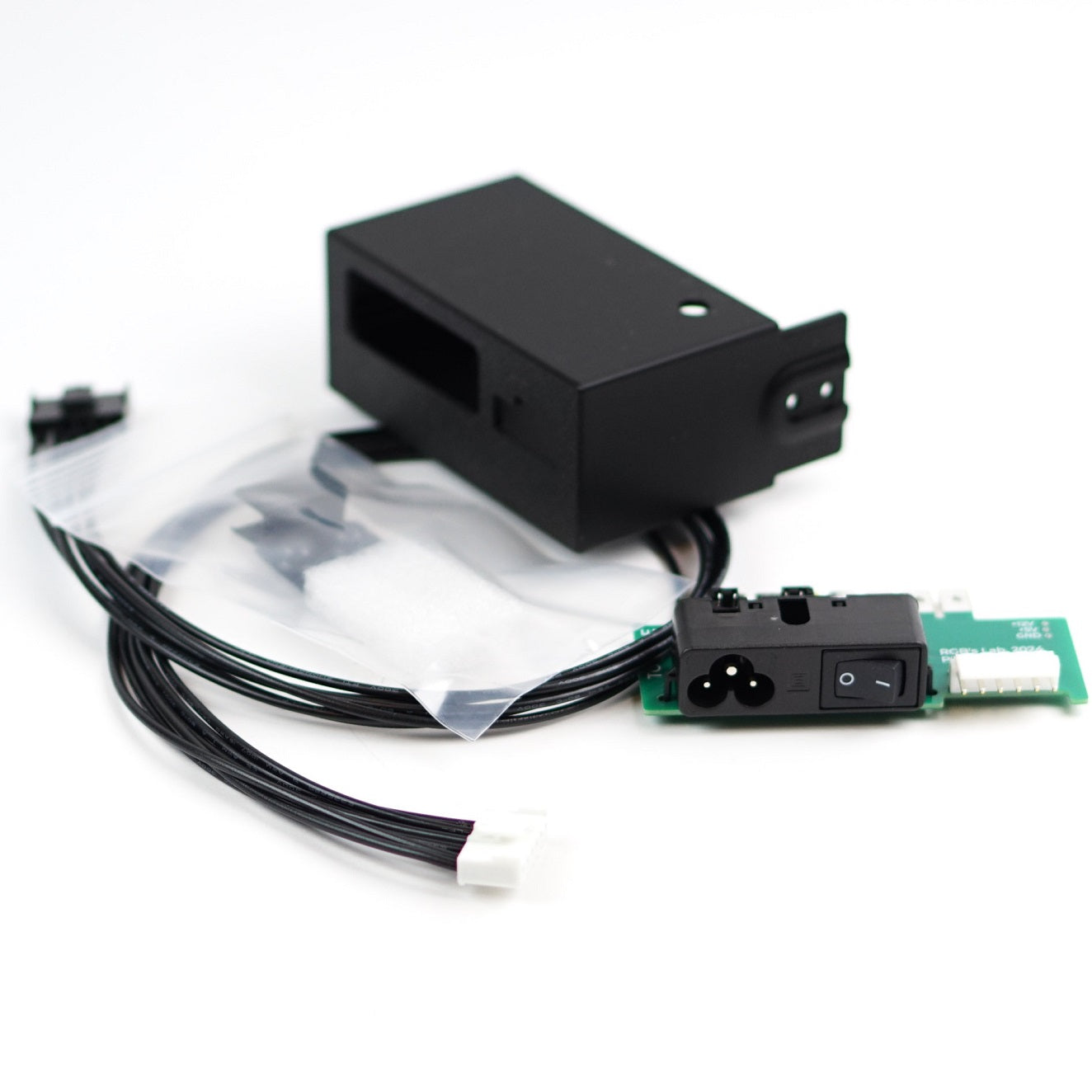

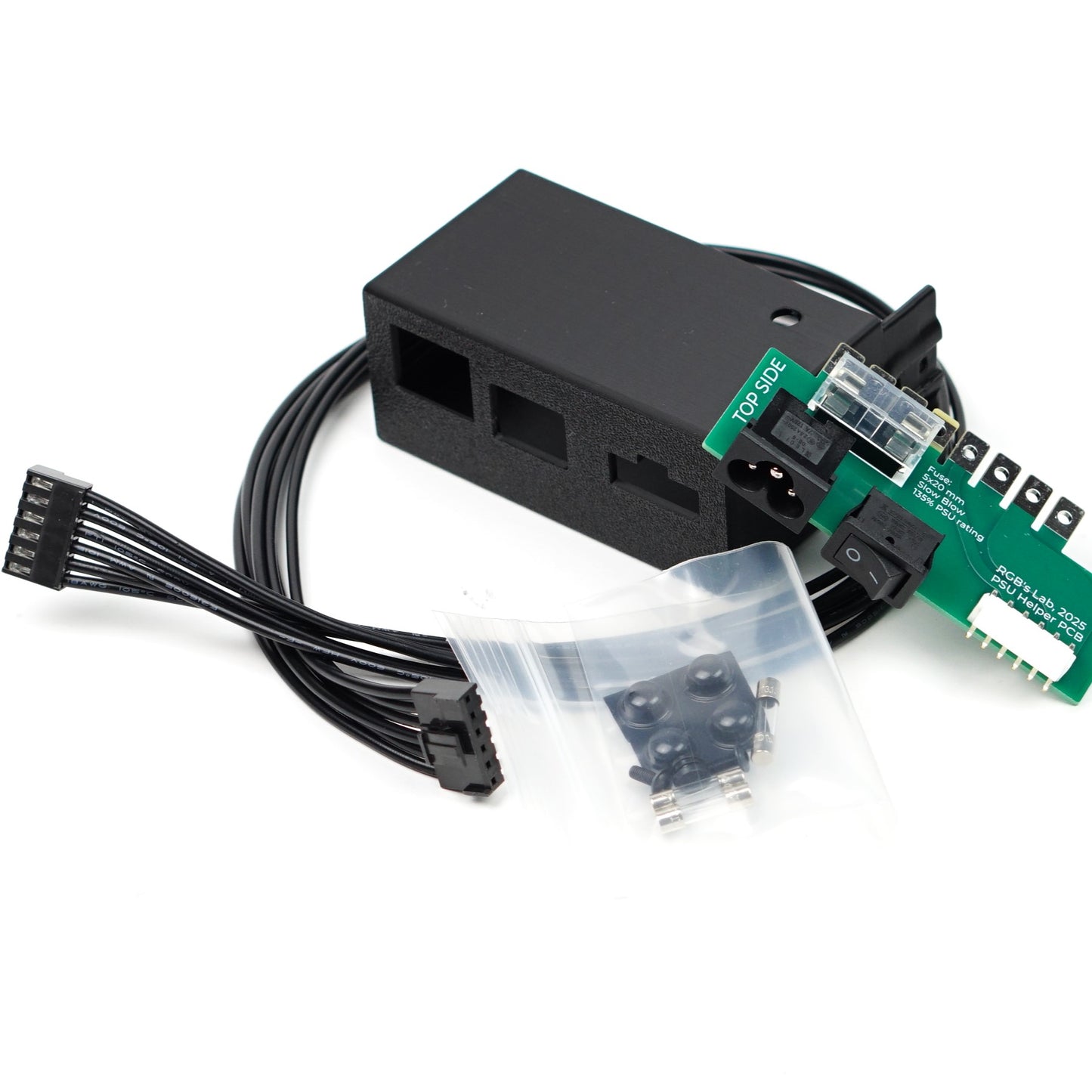

The set includes:

• a 3D printed cover printed in black PLA+
• a custom PCB with 2 oz copper layers
• a 60 cm long HAS compatible 6-pin JST-VH power supply harness (2x16AWG for GND, 2x16AWG for +5V, 1x18AWG for -5V, 1x18AWG for +12V)
• 3 x fuses, one for each PSU variant (65W, 85W, 125W)
• a pair of HEX screws
• 4 x rubber feet with adhesive
• a dust cap

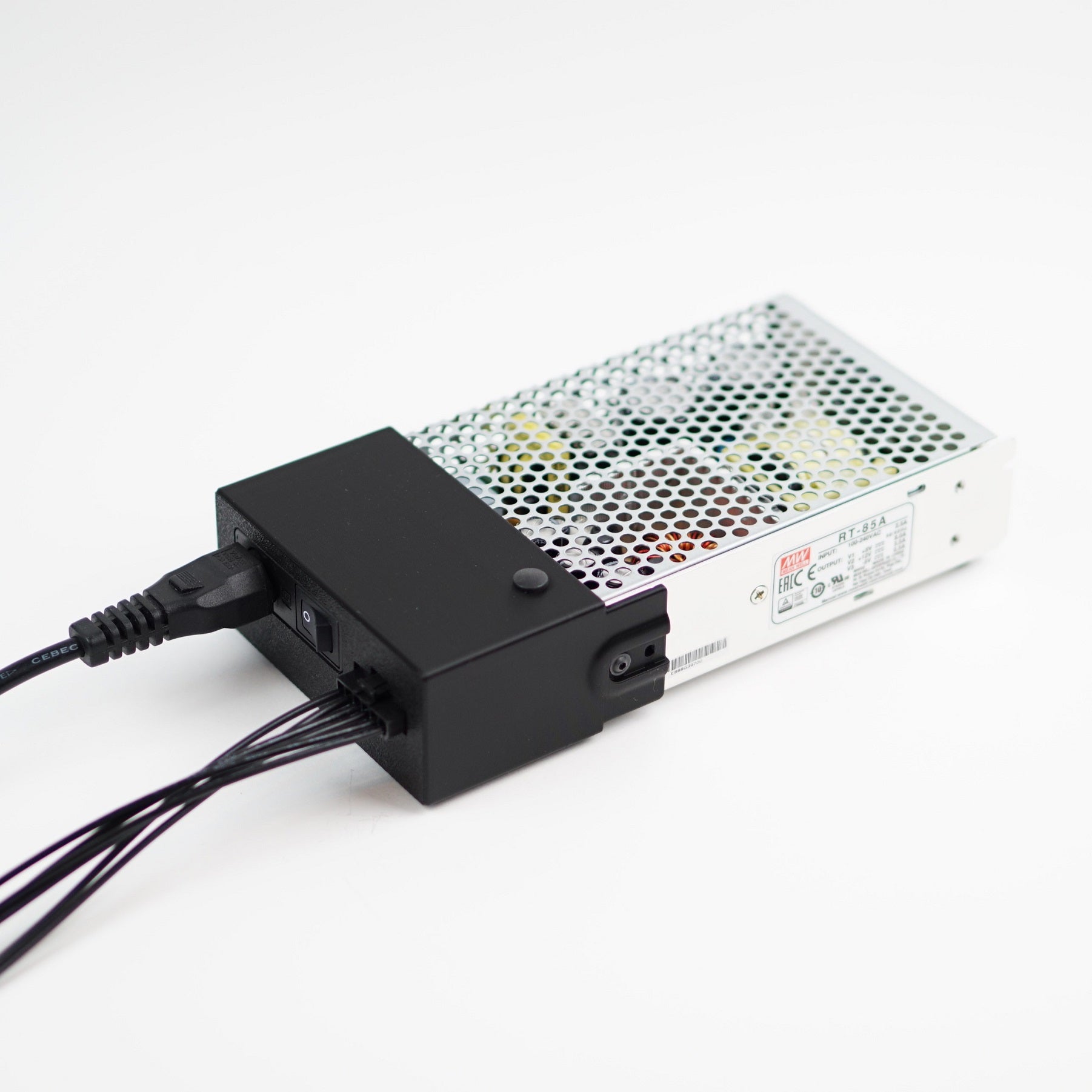

You will need your own IEC C5 cable. It is the same cable that is commonly used with laptop power bricks.

Cover assembly instruction
